The PointingDevice class is used to represent Pointing Devices connected to the computer or pseudo-devices. More...

#include <PointingDevice.h>

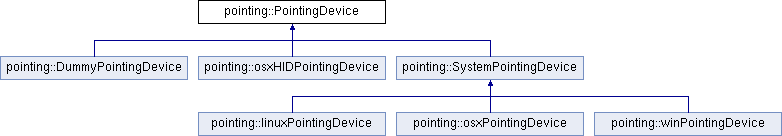

Inheritance diagram for pointing::PointingDevice:

Public Types
enum	{ BUTTON_1 =1, BUTTON_2 =2, BUTTON_3 =4 }

typedef void(*	PointingCallback )(void *context, TimeStamp::inttime timestamp, int dx, int dy, int buttons)

Public Member Functions
virtual bool	isActive (void) const
	Indicates whether the current device is active. More...

virtual int	getVendorID (void) const
	Vendor identifier number. More...

virtual std::string	getVendor (void) const
	Readable vendor name. More...

virtual int	getProductID (void) const
	Product identifier number. More...

virtual std::string	getProduct (void) const
	Readable product name. More...

virtual double	getResolution (double *defval=0) const =0
	Resolution of the mouse in CPI (counts per inch). More...

virtual double	getUpdateFrequency (double *defval=0) const =0
	Update frequency of the mouse in Hz. More...

virtual URI	getURI (bool expanded=false, bool crossplatform=false) const =0
	Constructs the URI according to the parameters of the device. More...

virtual void	setPointingCallback (PointingCallback callback, void *context=0)=0
	Sets the callback function which is called when device events occur. More...

virtual void	setDebugLevel (int)
	Sets the level of information for debugging purposes (default = 0).

virtual void	debug (std::ostream &) const
	Outputs the debug information to the given output stream.


int	mm2counts (double millimeters) const

double	counts2mm (int counts) const

int	in2counts (double inches) const

double	counts2in (int counts) const

Static Public Member Functions
static void	idle (int milliseconds)
	The function is used to sleep the current thread. More...


static PointingDevice *	create (const char *device_uri=0)
	This static function is used to instantiate a platform-specific object of the class. More...

static PointingDevice *	create (std::string device_uri)
	This static function is used to instantiate a platform-specific object of the class. More...

Protected Member Functions
void	registerTimestamp (TimeStamp::inttime timestamp)
	registerTimestamp Registers the current timestamp to calculate frequency of the device More...

double	estimatedUpdateFrequency () const
	estimatedUpdateFrequency Estimates the frequency depending on the input timestamps More...

Protected Attributes
unsigned long	buckets [BUCKETS_SIZE]

TimeStamp::inttime	lastTime

Static Protected Attributes
static const int	BUCKETS_SIZE = 5

Detailed Description

The PointingDevice class is used to represent Pointing Devices connected to the computer or pseudo-devices.

It is an abstract class which creates an instance using create factory method.

Member Typedef Documentation

typedef void(* pointing::PointingDevice::PointingCallback)(void *context, TimeStamp::inttime timestamp, int dx, int dy, int buttons)

This signature is used when a callback function is created for the Pointing Device. The callback function is called whenever the device is moved or its buttons are pressed.

Parameters

dx	Horizontal translation of the device
dy	Vertical tranlation of the device
buttons	The state of the buttons (from 0 to 7)

Member Enumeration Documentation

anonymous enum

The enumeration of mouse buttons

Enumerator
BUTTON_1	Left mouse button
BUTTON_2	Middle mouse button
BUTTON_3	Right mouse button

Member Function Documentation

double pointing::PointingDevice::counts2in ( int counts ) const

Not implemented in the current version

double pointing::PointingDevice::counts2mm ( int counts ) const

Not implemented in the current version

PointingDevice * pointing::PointingDevice::create ( const char * device_uri = 0 )

static

This static function is used to instantiate a platform-specific object of the class.

Parameters

device_uri is used to initialize the Device with given parameters. If not given, any supported device is chosen.

Returns: PointingDevice instance with specified parameters.

PointingDevice * pointing::PointingDevice::create ( std::string device_uri )

static

This static function is used to instantiate a platform-specific object of the class.

Parameters

device_uri is used to initialize the Device with given parameters. If not given, any supported device is chosen.

Returns: PointingDevice instance with specified parameters.

double pointing::PointingDevice::estimatedUpdateFrequency ( ) const

protected

estimatedUpdateFrequency Estimates the frequency depending on the input timestamps

Returns: 125, 250, 500, 1000 or -1

virtual std::string pointing::PointingDevice::getProduct ( void ) const

inlinevirtual

Readable product name.

Returns: Product name

Reimplemented in pointing::osxHIDPointingDevice, and pointing::SystemPointingDevice.

virtual int pointing::PointingDevice::getProductID ( void ) const

inlinevirtual

Product identifier number.

Returns: Product number associated with the device

Reimplemented in pointing::osxHIDPointingDevice, and pointing::SystemPointingDevice.

virtual double pointing::PointingDevice::getResolution ( double * defval = 0 ) const

pure virtual

Resolution of the mouse in CPI (counts per inch).

Parameters

defval is input variable to define explicitly the resolution.

Returns: Resolution in CPI (if not available 400 cpi).

Implemented in pointing::osxHIDPointingDevice, pointing::SystemPointingDevice, pointing::DummyPointingDevice, and pointing::osxPointingDevice.

virtual double pointing::PointingDevice::getUpdateFrequency ( double * defval = 0 ) const

pure virtual

Update frequency of the mouse in Hz.

Parameters

defval is input variable to define explicitly the update frequency.

Returns: Update frequency in Hz (if not available 125 Hz).

Implemented in pointing::osxHIDPointingDevice, pointing::SystemPointingDevice, pointing::DummyPointingDevice, pointing::osxPointingDevice, and pointing::linuxPointingDevice.

virtual URI pointing::PointingDevice::getURI	(	bool	expanded = `false`,
		bool	crossplatform = `false`
	)		const

pure virtual

Constructs the URI according to the parameters of the device.

Parameters

expanded	specifies if additional parameters must be displayed.
crossplatform	defines whether the URI should be crossplatform. if True vendorId and productId are included in the URI

Returns: The corresponding URI of the device.

Implemented in pointing::osxHIDPointingDevice, pointing::SystemPointingDevice, pointing::DummyPointingDevice, pointing::osxPointingDevice, and pointing::linuxPointingDevice.

virtual std::string pointing::PointingDevice::getVendor ( void ) const

inlinevirtual

Readable vendor name.

Returns: Vendor name

Reimplemented in pointing::osxHIDPointingDevice, and pointing::SystemPointingDevice.

virtual int pointing::PointingDevice::getVendorID ( void ) const

inlinevirtual

Vendor identifier number.

Returns: integer number associated with vendor of the device

Reimplemented in pointing::osxHIDPointingDevice, and pointing::SystemPointingDevice.

void pointing::PointingDevice::idle ( int milliseconds )

static

The function is used to sleep the current thread.

Parameters

milliseconds Sleep time of the main thread in milliseconds

int pointing::PointingDevice::in2counts ( double inches ) const

Not implemented in the current version

virtual bool pointing::PointingDevice::isActive ( void ) const

inlinevirtual

Indicates whether the current device is active.

Returns: true if active

Reimplemented in pointing::osxHIDPointingDevice, and pointing::SystemPointingDevice.

int pointing::PointingDevice::mm2counts ( double millimeters ) const

Not implemented in the current version

void pointing::PointingDevice::registerTimestamp ( TimeStamp::inttime timestamp )

protected

registerTimestamp Registers the current timestamp to calculate frequency of the device

Parameters

timestamp Current timestamp

virtual void pointing::PointingDevice::setPointingCallback	(	PointingCallback	callback,
		void *	context = `0`
	)

pure virtual

Sets the callback function which is called when device events occur.

Parameters

callback	The pointer to the callback function.
context	The pointer to anything that can be used in the callback function.

Implemented in pointing::osxHIDPointingDevice, pointing::SystemPointingDevice, and pointing::DummyPointingDevice.

The documentation for this class was generated from the following files:

PointingDevice.h
PointingDevice.cpp
